Product overiew

Features :


● Very Compact Size, Easy to Carry, Low Cost.

● Detects Popular Power Over Ethernet Standards.



Description:

The PoE -Tester is a new generation of easy-to-use PoE detection adapter, suitable for network installers, system integrators, company management

information systems and even home users to quickly identify the existence of Power over Ethernet on application network. It is designed to detect

whether IEEE 802.3af/at/bt and 24V voltage are running on the cable, and to identify the type of PSE (power supply equipment).

This product has a compact design and is tailor-made for system integrators and installers.


The PoE tester detects 48V output through mode A and mode B, and detects 24V output through mode C. Mode A (supplied on pins 4, 5, 7, 8),

Mode B (supplied on pins 1, 2, 3, 6), Mode C 24V (supplied on pins 4, 5, 7, 8 ).

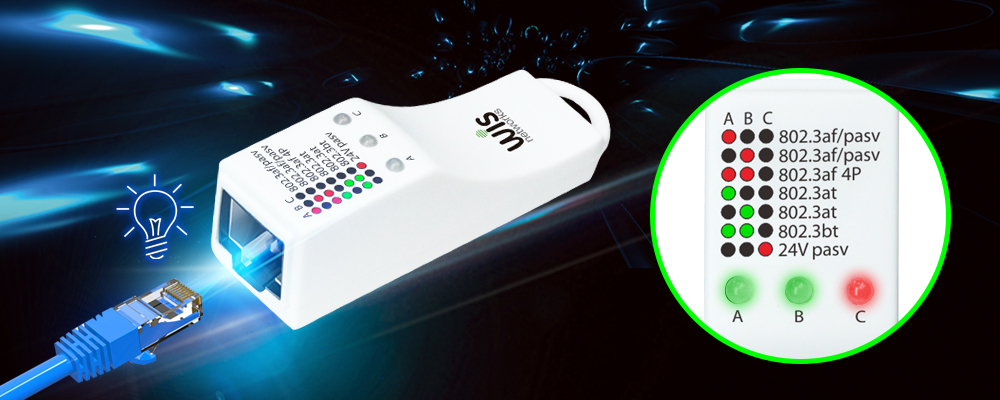

  LED indicators

LED Indicators

Bright ColorsPoE StandardPin

LED A

Red802.3 af PoE or 48V passivePins 4,5,7and 8
Green802.3 at PoE+

LED B

Red802.3 af PoE or 48V passivePins 1,2,3and 6
Green802.3 at PoE+

LED A&B

Both Red802.3af PoEAll pins
Both Green802.3 bt PoE++

LED C

Red24V passivePins 4,5,7and 8
