2.4/5GHz 6-Port Sector Antenna With Enclosure
| Specifications | |
Frequency Range | 2400-2485/5150-5850MHz |
Gain | Max 22dBi @5GHz 15dBo@2.4GHz |
Radiation | Directional |
Connectors | 4 Ports @5GHz 2 Ports @2.4GHz |
Connectors Type | MMCX or SMA |
Polarization | V+H |
Horizontal Beam width | MAX 120° |
Vertical Beam width | 8-16° |
Isolation | 25dB (Min) |
Front-to-Back Ratio | 25dB (Min) |
VSWR | <2.0 |
Impedance | 50 Ω |
Max Power | 20W |
| Enclosure Specifications | |
Material | Anti-UV ABS |
Color | White |
Weight | 3.5kg |

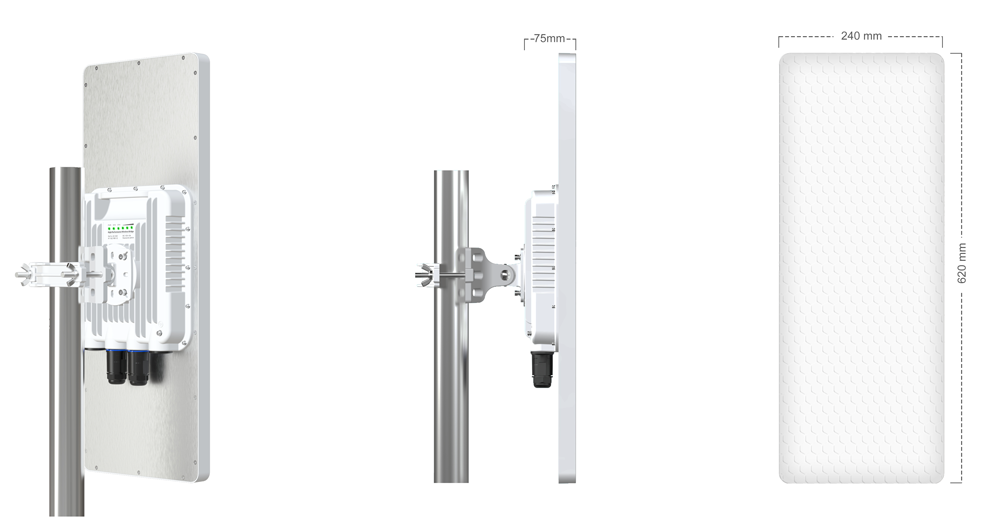

Antenna Dimensions | 620*240*75mm (No including Bracket) |
Inside Dimensions | 250*250*45mm |
Cable | RG 316,/L:15cm |
Casing | Weatherproof Structure |
Rating of Enclosure | IP67 |
Mounting | Pole Mount |
Diameter of the Pole | Φ30 to Φ70 mm |
