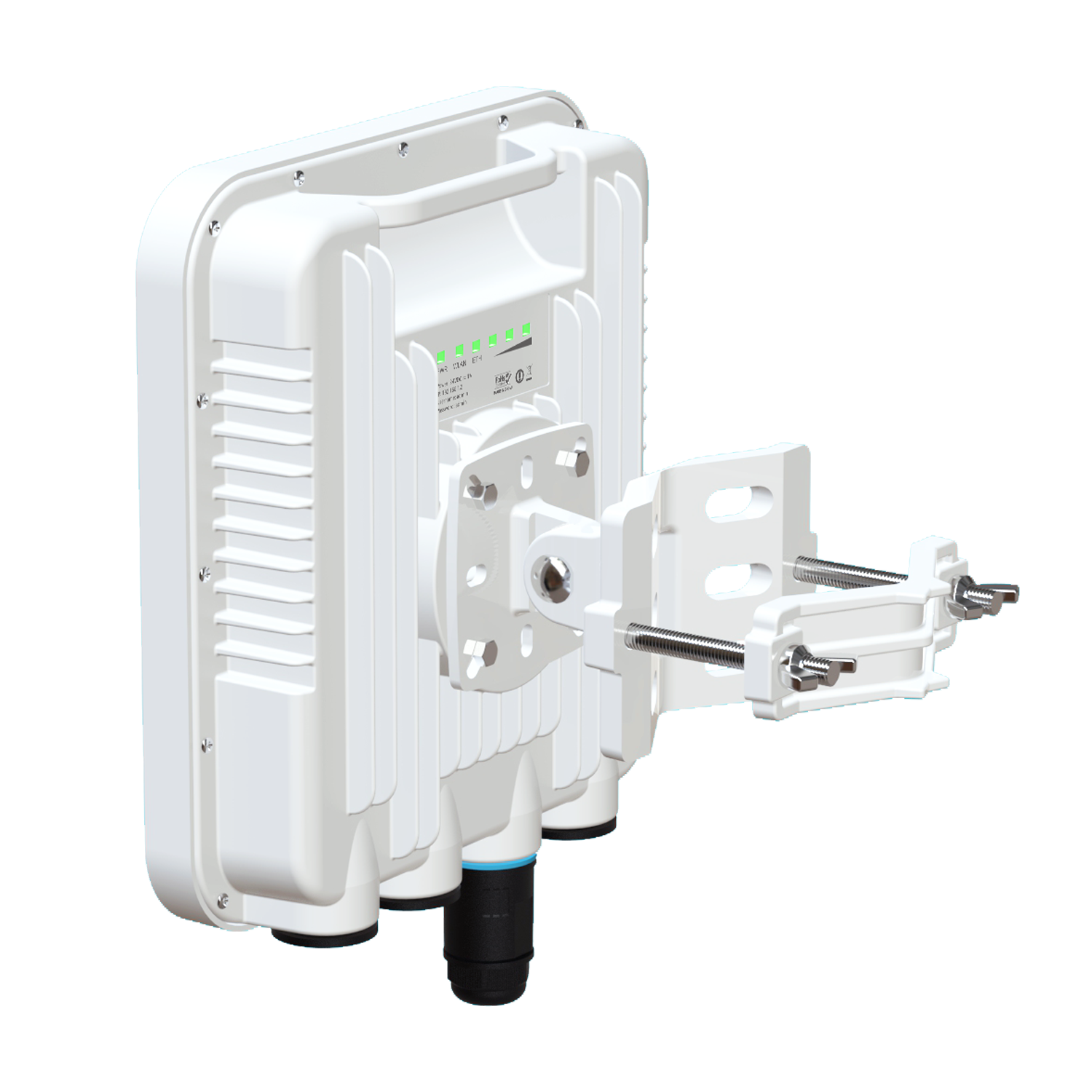

20dBi Outdoor Panel Antenna With Enclosure
Key Features |  |
• Dual Polarization Directional Antenna • 20dBi Long Distance Antenna • High Isolation of >25dB for entire 5GHz spectrum • Weatherproof IP67 Enclosure | |
Applications | |
• Outdoor Long Distance Point-to-Point (PtP) AP • Point-to-MultiPoint (PtMP) AP • Outdoor Mesh AP • 2x2 802.11be/ax/ac/an Radio Outdoor Solutions |
| Antenna Specifications | |
Gain | 2*20dBi |
Radiation | Directional |
Connectors | 2x MCX or U.FL Antenna Connectors |
Frequency Range | 4.95-6.425GHz |
Polarization | Dual Polarization |
Azimuth -3dB Beamwidth | 30° |
Elevation -3dB Beamwidth | 30° |
Isolation | 45dB (Min) |
Front-to-Back Ratio | 30dB (Min) |
VSWR | <2.0 |
Impedance | 50 Ω |
Max Power | 20W |

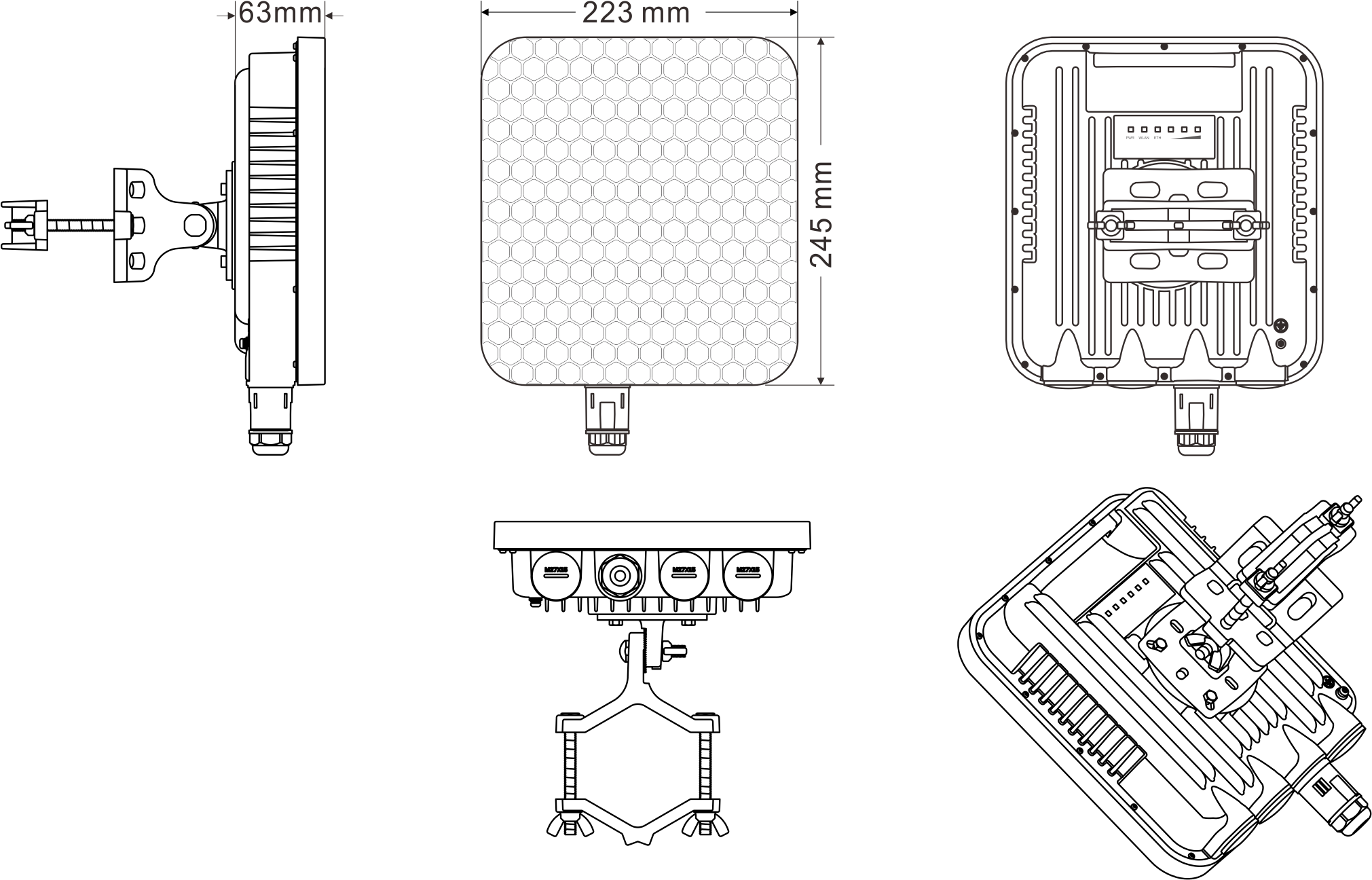

Dimensional Drawing
Enclosure Specifications | |
Material | Anti-UV ABS |
Color | White |
Weight | 2kg |
Outside Dimensions (H x W x D) | 223*245*63mm (No including Bracket) |
Inside Dimensions (H x W x D) | 180*170*35mm |
Cable | RG 316,/L:15cm |
Casing | Weatherproof Structure |
Rating of Enclosure | IP67 |
Mounting | Pole Mount |
Grounding Terminal | Built-in Grounding Terminal |
