Product overiew


WIS-S800AC is a robust outdoor 5GHz wireless base station featuring 802.11ac technology for high end

wireless coverage or backhaul connection. Featuring 11ac technology, the WIS-S800AC is ideal for WISP optimizing their

network with both backhaul and coverage ability by using together with Wisnetworks antenna.






Extremely Amazing Performance

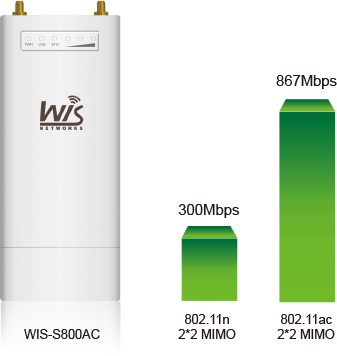

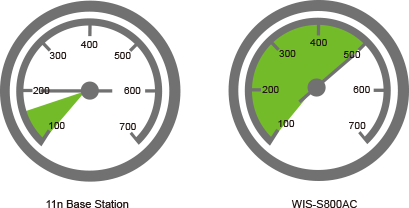

The integrated 2*2 MIMO technology for 867Mbps 5GHz makes it 3x speed than legacy 802.11n standard.

The tx power is boosted up to 27dBm for incredible long distance.

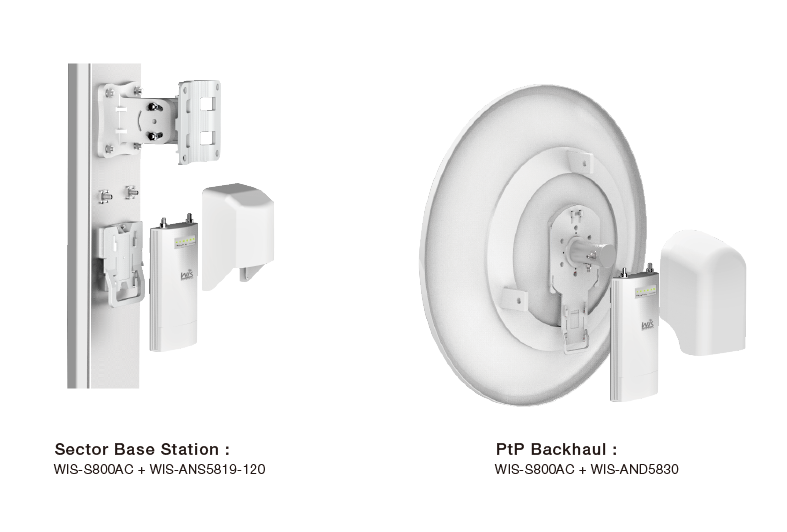

Seamless with Wisnetworks Antenna


By working with 2x2 MIMO sector antenna, WIS-S800AC is easy to provide long range outdoor PtMP connections.

While working with dishes / grids, the radio will help build long distance link up to 50km and still keep high throughput.



Up to 150 online concurrent clients


The high speed 720MHz Atheros CPU and 128MB DDR, the WIS-S800AC is capable for handling up 150 concurrent wireless

 client including CPE/ cellphone / pad / laptop. This makes the WIS-S800AC extremely applicable for PtMP or PtP applications.



Robust Lightning Protection


In order to reduce the WISP maintenance cost, we integrate 8kV Ethernet lighting protection module into the WIS-S800AC.

This feature along with high durable temperature range and IP65 housing make it far more robust working in outdoor environment.




New WisOS with NMS Support


The new fresh WisOS web interface makes the software much easier to operate and more detail info to monitor.

WiD TDMA, spectrum analyzer and more WisOS feature helps the WISP build a better wireless network. The WiController NMS central

management helps greatly reduce the cost of the device monitoring and maintaince.



  Base Station Series

 Model


 WIS-S800AC


WIS-S1200AX


WIS-S4800AX

 Frequency4.9~6.1GHz4.9~6.1GHz4.9~7.125GHz
 Tx Power23dBm23dBm27dBm
 Speed867Mbps1201Mbps4800Mbps
 ETH1*1000M1*1000M1*2.5G+1*G
 Dimension214*92*32mm214*92*32mm214*100*32mm
