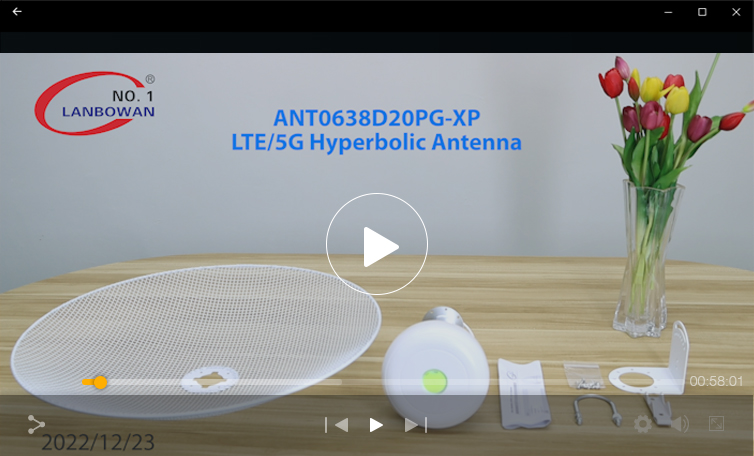

698-3800MHz MIMO Mesh Antenna

Features

•  698-3800 MHz Frequency

•  20dBi High Gain

•  MIMO

•  Dual Slant (±45°)


Applications

•  Works on any 3G / 4G / LTE /CBRS/5G cellular network such as Verizon, AT&T, Sprint, T-Mobile and more

•  Dual Antenna MIMO Design Improves Performance


Technical Specifications

Electrical

Model

ANT0638D20PG-XP

Frequency Range

698-960MHz

1710-2690MHz

3300-3800MHz

Gain

9±2dBi

18±2dBi

20±2dBi

VSWR

<2.5

<2.0

<2.0

Polarization

Dual Slant (±45°)

Isolation

>15dB

>15dB

>15dB

Front to Back Ratio

>8dB

>15dB

>20dB

Horizontal Beam width

40±10°

25±10°

20±10°

Vertical Beam width

40±10°

25±10°

20±10°

Maximum Power Per Port

50W

Impedance

50Ω

Lighting protection

DC Ground

Mechanical

Connector

2 * N/RPSMA/SMA

Antenna Size

φ0.6 m

Antenna Weight

2kg

Antenna color

white

Diameter of the Pole

Φ30mm to φ50mm

Mechanical Tilt

± 25°

Operational Temperature

-40°C to +70°C (-32°F to +158°F)
