Overview
Cable Wiring Specification T568B
RJ45 Pin Number | Wire Color | Signal Description |
| 0 | Copper | Drain Wire |
| 1 | White/Orange | BI_DA + |
| 2 | Orange | BI_DA - |
| 3 | White/Green | BI_DB + |
| 4 | Blue | BI_DC + |
| 5 | White/Blue | BI_DC - |
| 6 | Green | BI_DB - |
| 7 | White/Brown | BI_DD + |
| 8 | Brown | BI_DD - |

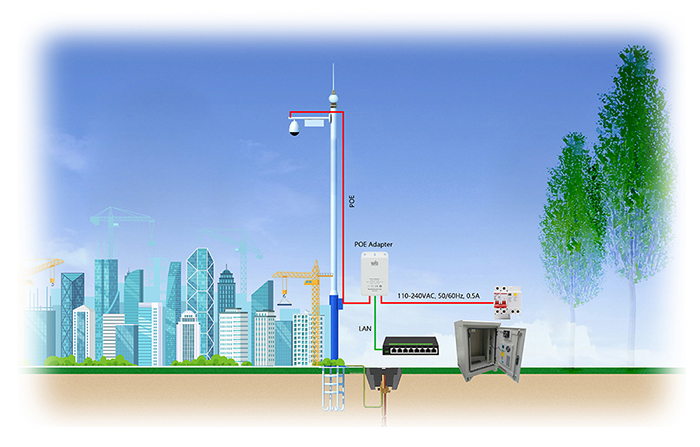

Application
