Product Overview


The WisCloud Indoor Access Point is the innovative series of products with remarkable performance in their features.

All configuration and management is centrally and effectively operated by the WisCloud Controller.




LEARN MORE.png


Enterprise Level Radio Chip-set


The high speed 1.2GHz Qualcomm CPU and 512MB DDR makes WisCloud access points

 much powerful to provide a stable connectivity and multifunctional wireless networks.





Easy Installation


With our mounting kits, customers can easily mount it in different indoor conditions. While the AP

is mounted on the ceiling or on the wall, you can avoid most interference and extend your Wi-Fi coverage.

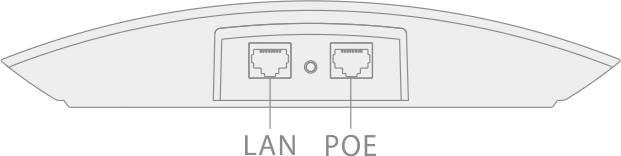

Ethernet LAN data interface and Power supply interface.

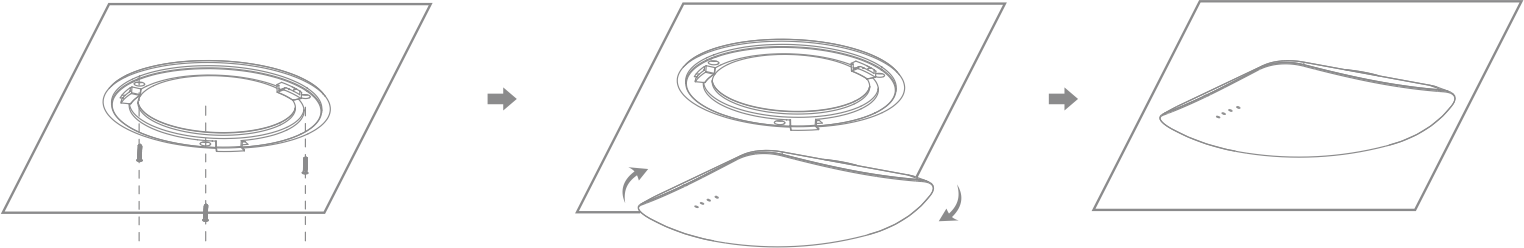

Installation Diagram:



① Remove the chassis and fix it in

    the ceiling with  three screws.

② Align the bayonet on AP to the bayonet

on the chassis, then rotate it clockwise.

③ Completion of installation



Support for Standard PoE


WisCloud Access Point is able to be supplied power by a power injector using 802.3af(48 VDC) PoE

technology and make it more flexible to deploy the device in indoor ceiling environment.

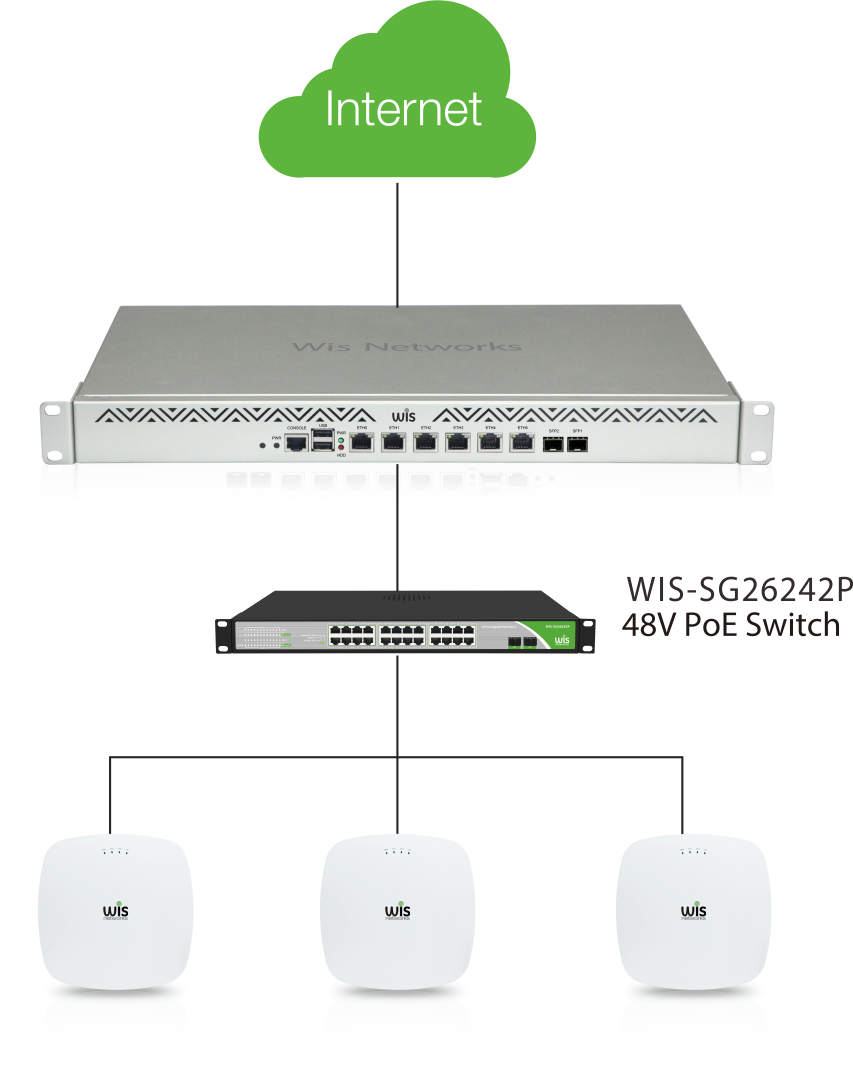

Cloud-Managed Wireless Networks


Deploy WisCloud AP and scale up easily without any on-site controllers, truly cloud architecture.







 Model


 WCAP


WCAP-HP


WCAP-AC-L


WCAP-AC


WCAP-AC-Pro

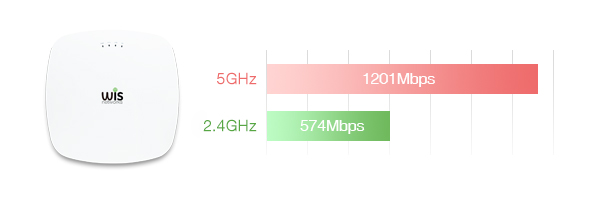

 Frequency2.4GHz2.4GHz2.4GHz + 5GHz2.4GHz + 5GHz2.4GHz + 5GHz
 Speed300Mbps300Mbps300+433Mbps300+867Mbps450+1300Mbps
 PoE24V(v1), 48V(v2)24V(v1), 48V(v2)48VDC 802.3af48VDC 802.3af48VDC 802.3af/at
 ETH1*100M1*100M1*100M1*1000M1*1000M
 Dimensionφ160*30mmφ195*45mmφ160*30mm168*168*30mmφ180*56mm
