2.3-2.7GHz 19dBi Panel Antenna

Technical Specifications

Electrical

Model

ANT2327D19C-DP

Frequency Range

2300-2700MHz

Gain

2*19dBi

Polarization

Horizontal and Vertical

Horizontal Beamwidth

18°

Vertical Beamwidth

18°

VSWR

<1.5Type; Max 2.0

Maximum Power Per Port

50W

Front to Back Ratio

>28 dB

Isolation

>25 dB

Impedance

50Ω

Lighting protection

DC Ground

Mechanical

Connector

2*N Female

Size

371x371x40mm

Antenna Weight

3.5kg

Radome color

white

Radome material

ABS

Mounting mast diameter

Ø30 to 50mm

Ingress Protection

Outdoor IP67

Operational Temperature

-40°C to +70°C (-32°F to +158°F)

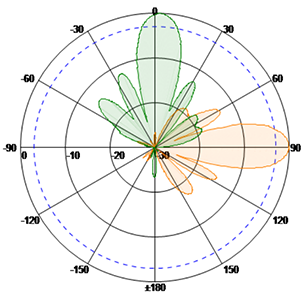

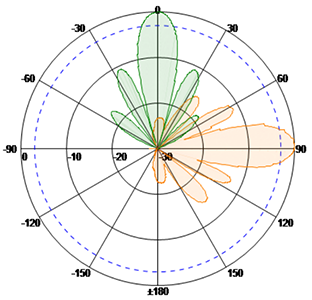

Radiation patterns taken at 2400 MHz

19C V.png19C H.png

Vertical

Horizontal
