Model

ANT0627D8Z-XP

Freq. Range

698-960 MHz

1710-2700MHz

Gain

8dBi

8dBi

V.S.W.R

<2.0

Polarization

±45° Slant

Isolation

>25dB

Front to Back Ratio

>23dB

Horizontal  Beamwidth

65º

Vertical  Beamwidth

60º

Nominal Impedance

50 ohm

Power Handling

100 W

PIM (2x 43dBm Carrier)

<-140dBc

Connector

2x7/16 Female  (N Type available)

Size

310x310x150mm

Weight

3kg

Radome Material

UV Protection ABS

Rated Wind Velocity

200 km/h

Temperature

-40ºC to +70ºC

Diameter of the Pole

Φ20 to φ80mm

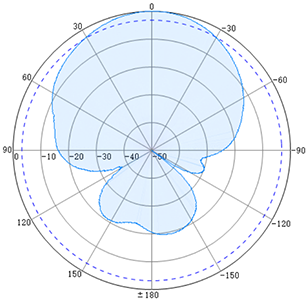

Azimuth

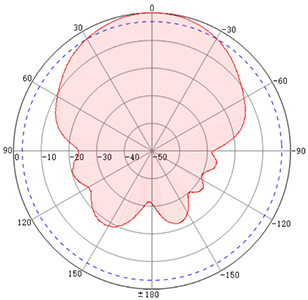

Elevation
