698-2700MHz 8dBi Yagi Antenna

Features

  698-960/1710-2700MHz Frequency

  8dBi High Gain



Applications

  Works on any 3G/4G / LTE cellular network

  DAS

Technical Specifications

Electrical

Model

ANT0627Y8

Frequency Range

698-960MHz

806-960MHz

1710-2690MHz

Gain( dBi)

7.5dBi

8dBi

10dBi

VSWR

<1.5

<1.5

<1.5

Front to Back Ratio

>15dB

>20dB

>20dB

Horizontal Beam width

85°

85°

60°

Vertical Beam width

65°

60°

50°

Polarization

Vertical

Maximum Power Per Port

50W

Impedance

50Ω

Lighting protection

DC Ground

Mechanical

Connector

N female or customized

Antenna Size

290x210x65 mm

Antenna Weight

1kg

Antenna color

white

Diameter of the Pole

Φ30mm to φ70 mm

Mechanical Tilt

± 20°

Operational Temperature

-40°C to +70°C (-32°F to +158°F)

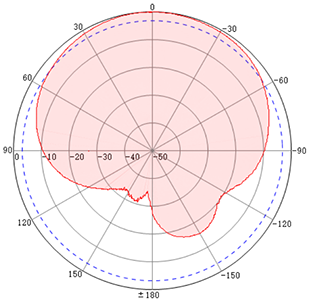

Azimuth

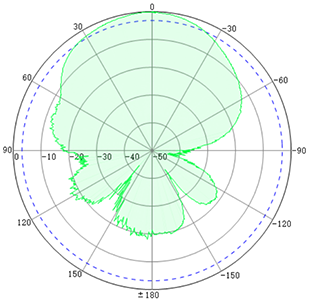

Elevation
