Overview

WISs latest generation of Unmanaged Switches make use of innovative energy-saving technologies.

Power consumption automatically adjusts according to link status and cable length,

allowing you to expand your network while minimizing your carbon footprint.

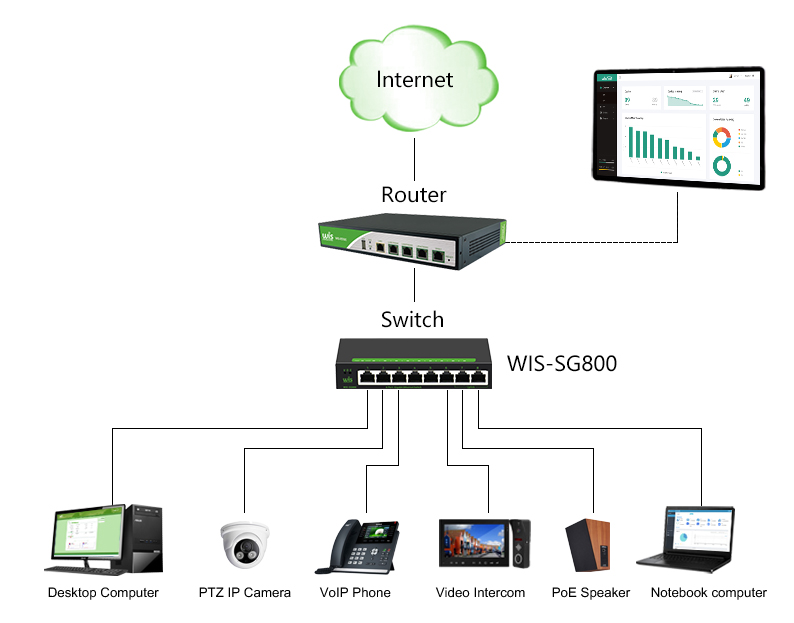

Application


Features


❆  Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

❆  Plug and play, no configuration needed

❆  Supports 802.1p/DSCP QoS and IGMP Snooping functions

❆  Durable metal casing, desktop/wall-mounting options, and a fanless design

❆  IEEE 802.3x flow control provides reliable data transfer

❆  Green Ethernet technology reduces power consumption


Secifications


Model

WIS-SG50

WIS-SG541

WIS-SG800

WIS-SG2400

Ethernet

5*RJ45 10/100/1000Mbps

5*RJ45

10/100/1000Mbps

8*RJ45 10/100/1000Mbps

24*RJ45 10/100/1000Mbps

Switching Capacity

10Gbps

10Gbps

16Gbps

48Gbps

Packet Forwarding Rate

7.4 Mpps

7.4 Mpps

11.9Mpps

35.71Mpps

Packet Buffer

1M

1M

2.5M

4M

MAC Address Table

1K

1K

4K

8K

Jumbo Frame

2Kbytes

2Kbytes

2Kbytes

4Kbytes

Transfer Mode

Store and forward

MTBF

100000 hour

Standards and Protocols

IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、

EN61000-4-4 (EFT) EN61000-4-5(Surge)

Network Medium

10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5  or above UTP(≤100m)

1000Base-TX : Cat5 or aboveUTP(≤100m)

Environment

Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F)

Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing

LED Indicators

PWR(Power indicator)、LOOP(Loop alarm)、Link(Network Link)

DIP Switch

VLAN:Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5;

Default:Default mode, all ports communicate with each other;

Extend:Monitor Mode, 1-4 ports support 100M speed reduction negotiation,

support 250 meters in 10Mbps/s mode,  port 5 as uplink port;

Dimensions ( W x D x H )

84*47*25mm

100*70*26mm

137*77*25mm

270*180*45mm

Weight

0.18kg

0.2kg

0.3kg

1.1kg

Max Power Consumption

2.3 W (220 V/ 50 Hz)

2.3 W (220 V/ 50 Hz)

2.77 W(220V/50Hz)

13.62W

External Power Supply

External Powe>r Adapter

(Output: 5 V DC / 0.6A)

External Power Adapter

(Output: 5 V DC / 0.6A)

External Power Adapter

 (Output: 5VDC / 0.6A)

100-240VAC, 50/60Hz

Security Certificae

CE、FCC、RoHS
