Product Overview

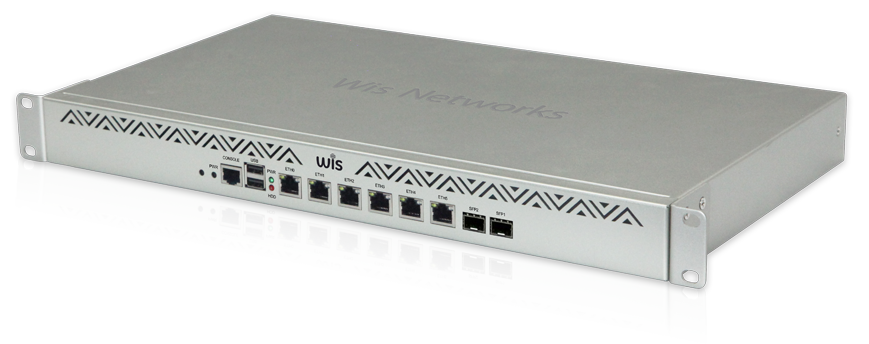

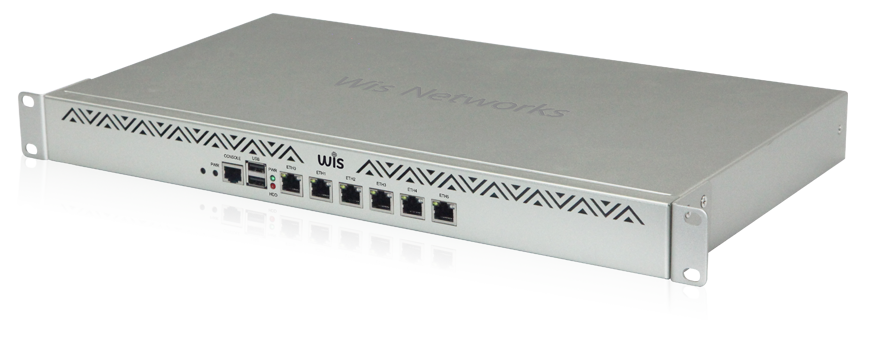

WIS-C5000 is a multi-WAN hotspot gateway which is ideal for Internet service provider or hotels / restaurant. It is full featured with captive

web portal authentication and PPPoE authentication, along with Wisnetworks unique powerful user account management feature for bandwidth

usage limit and time/date limit. The gateway supports up to 50,000 sessions and more than 5000 online users, using the 11-inch rack-mount

design, built-in power supply. Integrating Wisnetworks intelligent QoS and APP management feature.



WIS-C5000 helps you build a professional ISP level network easily and quickly, and provide you best Internet experience for WISP, Hotel and

other industries.






Features

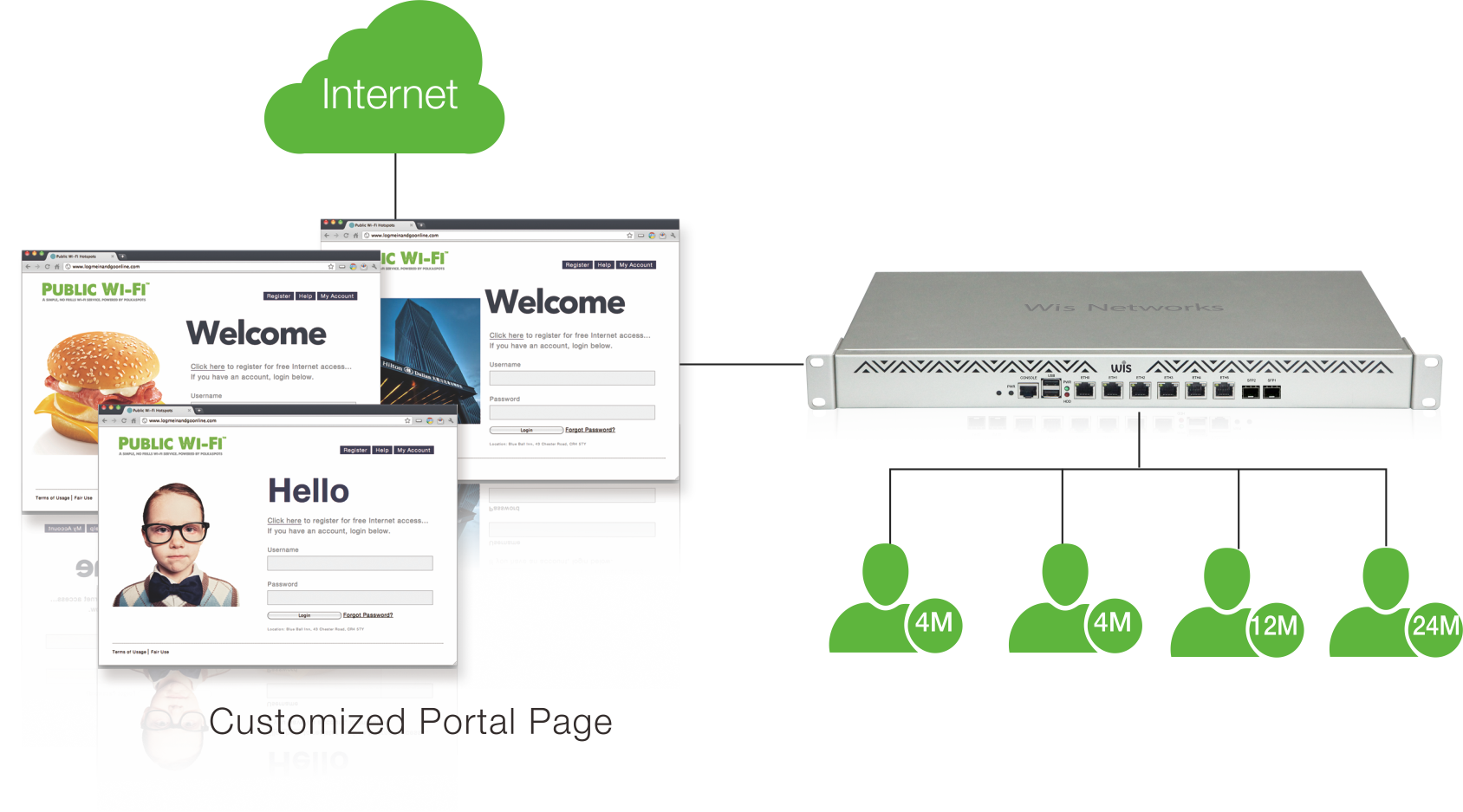

Captive Web Portal

 Customized Portal Page

 Unlimited user account

 Verifified by date/duration/traffific

 Account expiration notice

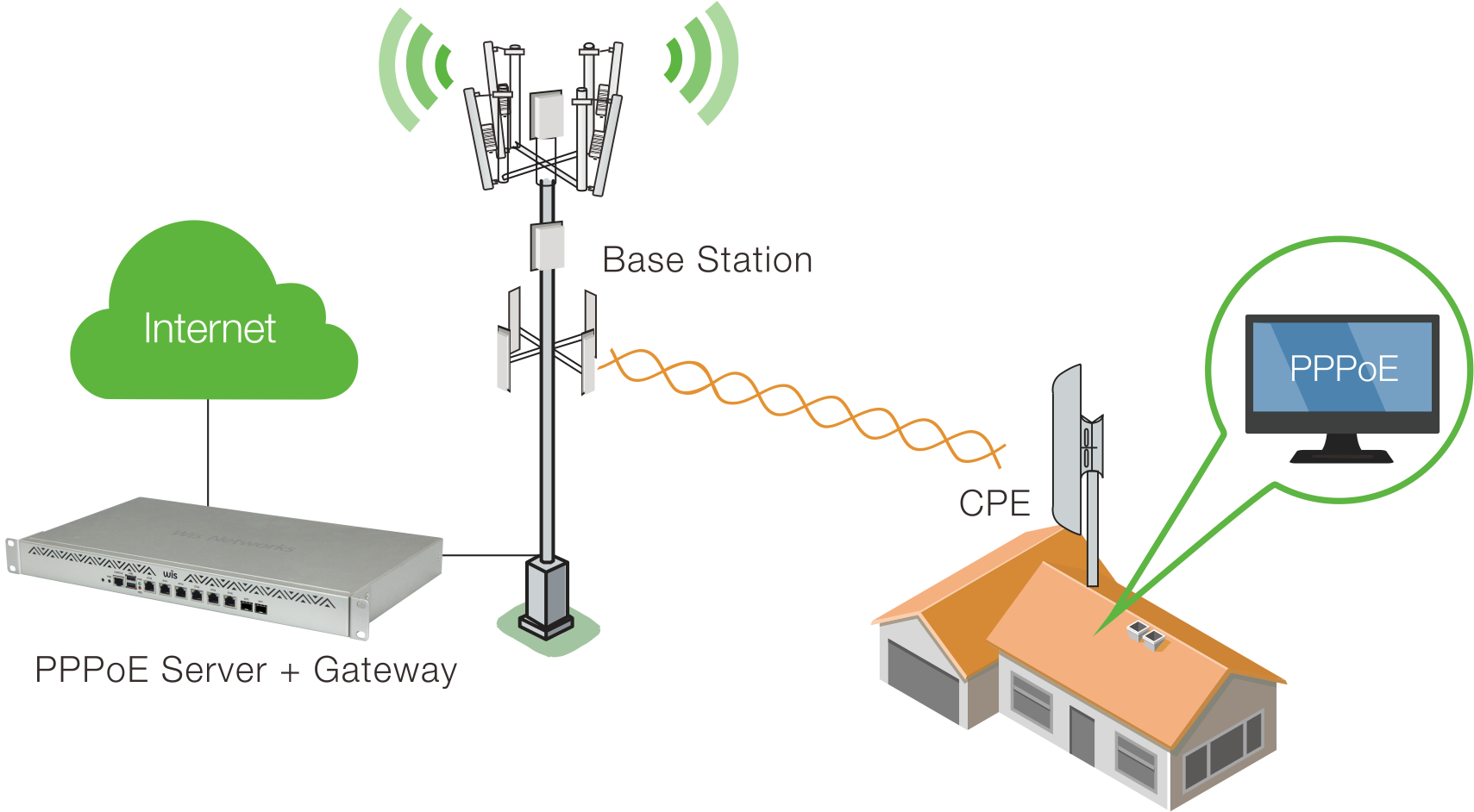

PPPoE Server (PPPoE)

❆  Support PAP/CHAP/MS-CHAP v2

❆  User download/upload speed limit

❆  Unlimited user account

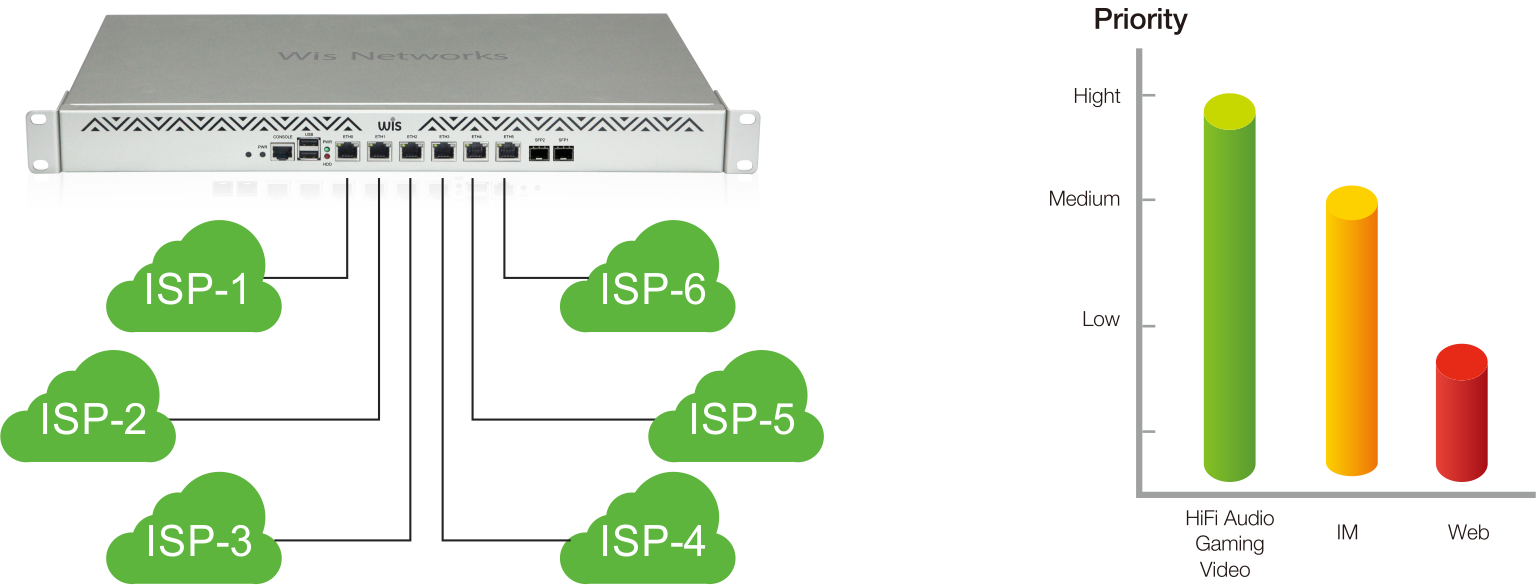

Load Balanced WAN

❆  Up to 4 WAN ports

❆  Merge and boost up Internet speed

❆  Policy for different ISP line




Smart QoS / APP Management

❆  Bandwidth and priority based QoS

❆  Policy for LAN application

❆  Layer-7 smart QoS


Network Topology




                      WIS-C200; WIS-C300;    WIS-C500

                              WIS-C1000;  WIS-C5000

HARDWARE

Model

WIS-C200

WIS-C300

WIS-C500

WIS-C1000

WIS-C5000

CPU

Intel Atom® D525

Intel Atom®1037U

Intel Celeron 3865U

Intel Core i5-3470

Intel Core i7-4770

RAM

2GB

4GB

4GB

8GB

8GB

HDD

16GB

16GB

16GB

32GB

32GB

SFP port

×

×

×

2*Gigabit SFP

2*10Gigabit SFP

Gigabit Ethernet

6*Gigabit

6*Gigabit

6*Gigabit

6*Gigabit

6*Gigabit

USB

2*USB 2.0

2*USB 2.0

2*USB 3.0

2*USB 2.0

2*USB 2.0

Console

Reset

Power

50W

50W

50W

150W

150W

Dimensions

1U (442*256*44mm)

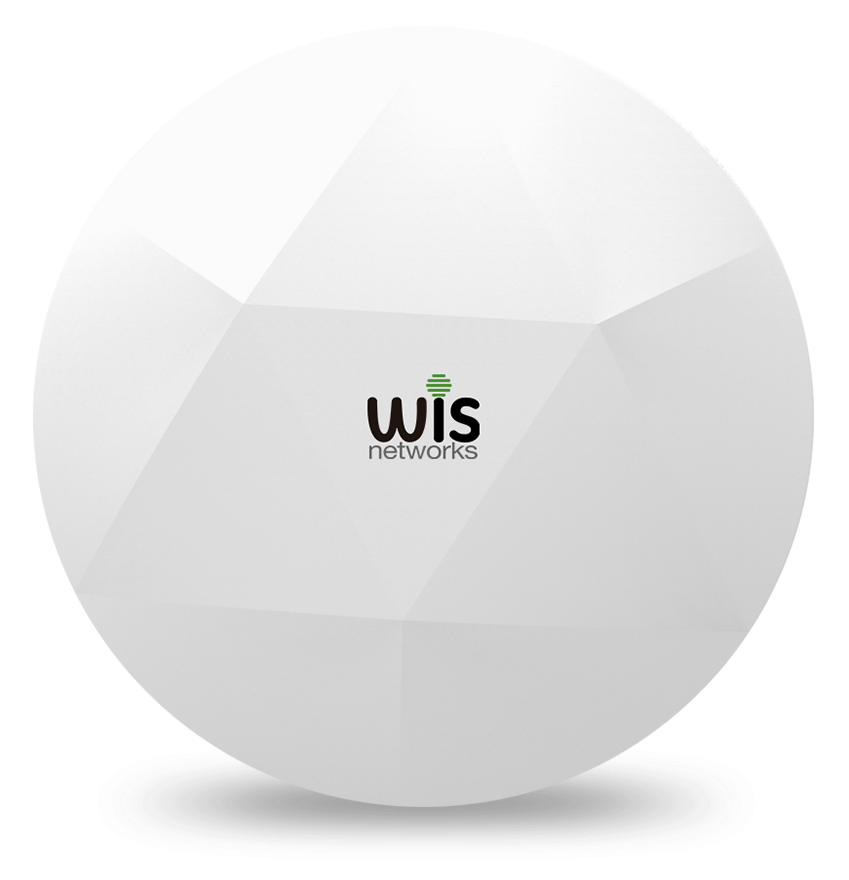

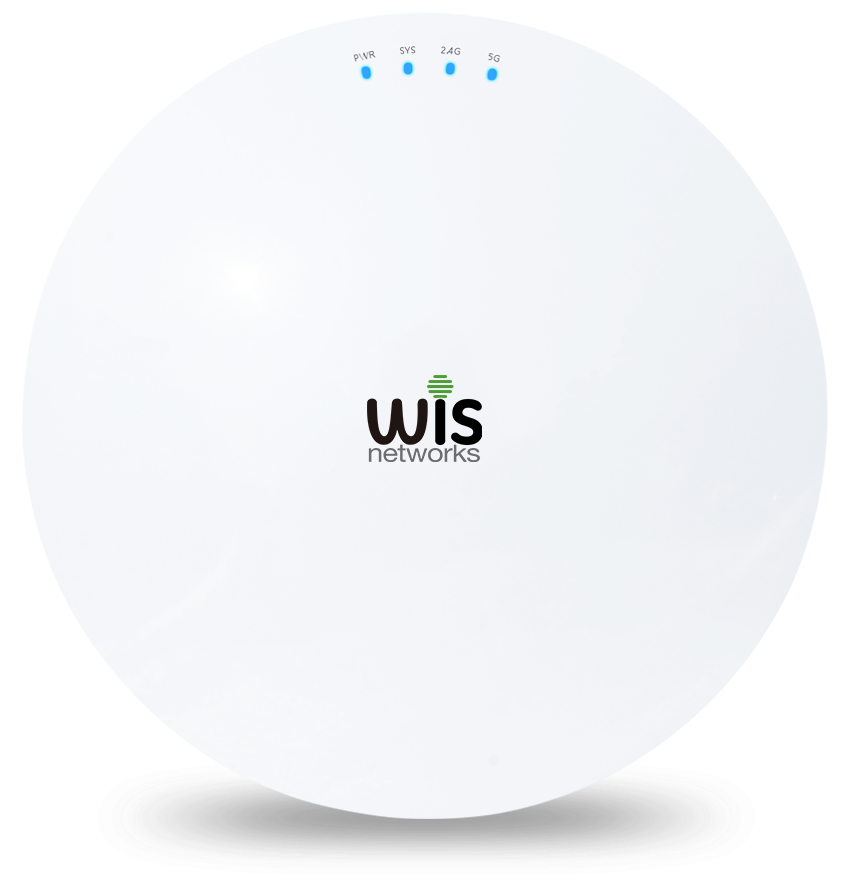

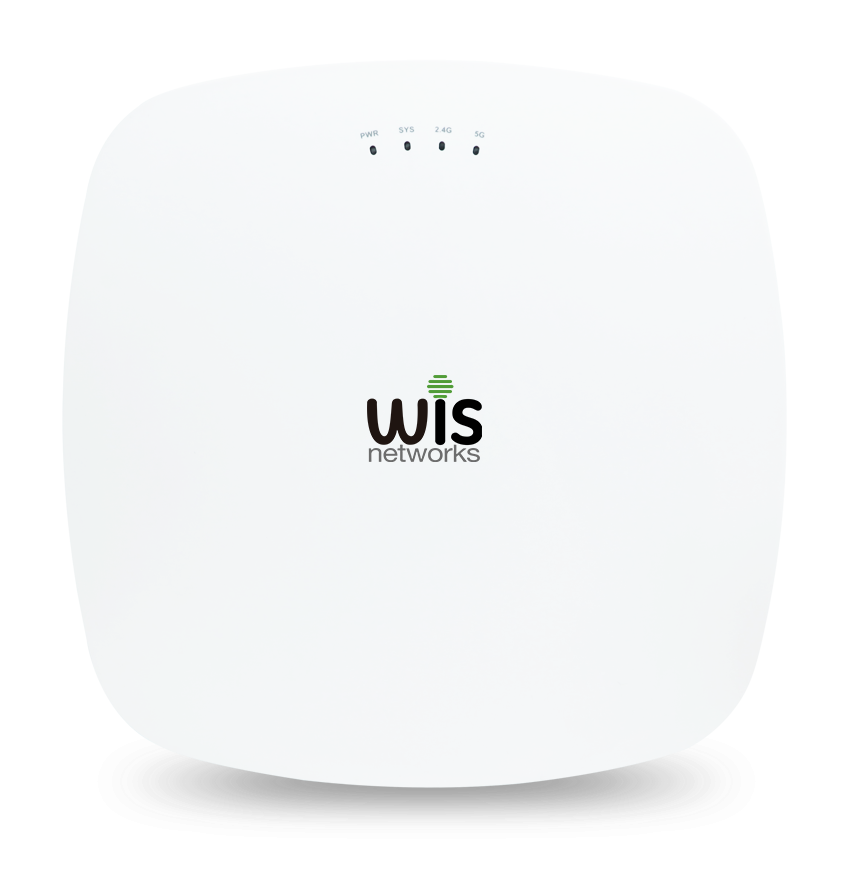

Support  WCAP-Lite, WCAP-AC-S, WCAP-AX




Model

WCAP-Lite

WCAP-AC-S

WCAP-AX

Frequency

2,4GHz

2,4GHz & 5GHz

2,4GHz & 5GHz

2.4GHz speed

300Mbps

300Mbps

574Mbps

2.4GHz MIMO

2*2

2*2

2*2

5GHz speed

-

867Mbps

1201Mbps

5GHz MIMO

-

2*2

2*2

PoE

802.3af/at

802.3af/at

802.3af/at

Ceiling Mount

Tx power

23dbm

23dbm

23dbm

Distance

150m

150m

150m
